C4 in-a-box

// Overview

Integrated Class 4 Softswitch for small to medium NGNs

Full C4 Softswitch capabilities
Entry level solution starting from 60 concurrent calls
Supports up to 180.000 BHCC
Supports up to 960 concurrent calls
Advanced and programmable call routing engine
Any-to-any protocol interworking
IP-to-IP peering
Controls media gateways with H.248
Up to 8 Media Gateways in a distributed architecture

Product Overview

An entry level solution for small NGN based networks. This product gives you the freedom to scale in future to medium or large NGN based networks.

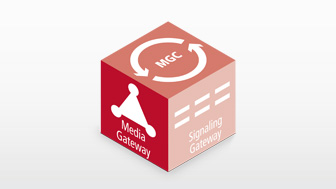

The C4-in-a-Box contains a Softswitch, Media Gateway, and Signaling Gateway in a single rack unit, saving space and costs.

Although the C4-in-a-Box is a small-scale solution, it also supports all C4 Softswitch features and comes with a full featured Element Management System (EMS).

Mulitprotocol Support and Advanced Routing

The C4-in-a-Box combines two capabilities and thereby maximizes both the number of supported network scenarios and the call completion rate.

Firstly, the C4-in-a-Box supports all major VoIP and TDM protocols and includes any-to-any protocol interworking.

Secondly, the C4-in-a-Box can analyze and determine routing based upon policies and sophisticated algorithms.

To carry out the second capability, it uses the intelligent, easy-to-configure Call Routing Engine.

Proven Interoperability

The TELES C4 Softswitch proven interoperability with all major VoIP and TDM carriers and vendors plays a major role in a variety of NGN scenarios for seamless operation in multi-vendor and multi-carrier environments.

Comprehensive System Management Capabilities

TELES C4-in-a-Box can be managed, configured, and deployed remotely with the included Element Management Systemincluded.

With full Fault-, Configuration-, Accounting-, Performance-, and Security-Management (FCAPS) compliance, the EMS offers enhanced operation

capabilities while reducing time and effort typically required to manage your Next Generation Network.

However, for service providers who already invested in large umbrella management systems, the Media Gateway Controller offers open interfaces

for provisioning, alarming, and billing.

Installation

The C4-in-a-Box is provided with an installation wizard that performs the initial configuration of the C4 Softswitch, Media Gateway, and Signaling Gateway.
